Sole-tenant nodes are being used by customers for workload isolation and also for licensing compliance (e.g. bringing Window Server licenses). Throughout the life cycle of a sole-tenant node there might be the necessity of moving virtual machines to another node group or even to another machine family (e.g. moving to N2 from N1). Refer to the documentation, to learn more about Node affinity and anti-affinity options.
In this article I’ll demonstrate how to manually change the affinity of VMs including moving to a node group running with a different machine family.
Environment
In my environment I have two sole-tenant nodes. One named ng-old running on N1 in europe-west1-c and another one named ng-new running on N2 in europe-west1-c :

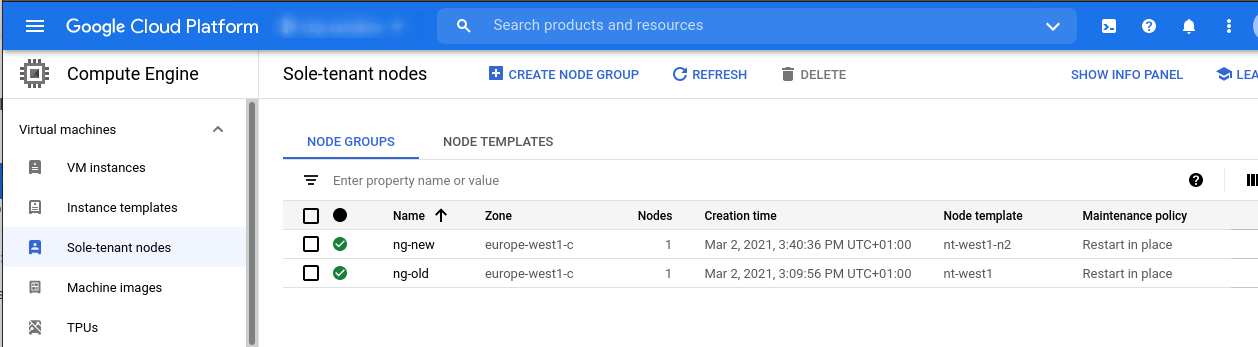

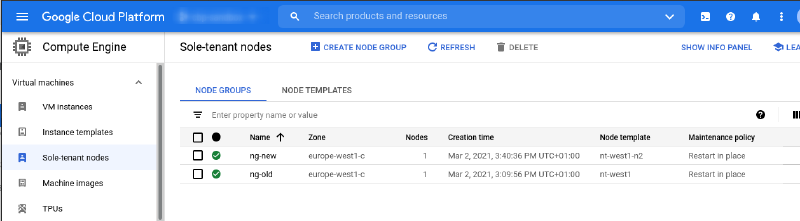

Sole-Tenant Nodes running in the environment
Move to a different node group
Updating the node affinity can be done through gcloud . Before the scheduling can be modified, the instance needs to be stopped.
ZONE="europe-west1-c"
VM="st-affinity"
NODEGROUP="ng-new"
# Stop VM
gcloud compute instances stop $VM --zone $ZONE
# Update affinity
gcloud compute instances set-scheduling $VM --zone $ZONE --node-group $NODEGROUP
# Start VM
gcloud compute instances start $VM --zone $ZONE
Move to a node group with a different machine family
Moving a VM to a node group that runs with a different machine family (e.g. N2 instead of N1) is very similar to the previous example. In this case there is only one additional step required that changes the machine type family.
ZONE="europe-west1-c"
VM="st-affinity"
MACHINE_TYPE="n2-standard-4"
NODEGROUP="ng-new"
# Stop VM
gcloud compute instances stop $VM --zone $ZONE
# Update machine type
gcloud compute instance set-machine-type $VM --zone $ZONE --machine-type $MACHINE_TYPE
# Update affinity
gcloud compute instances set-scheduling $VM --zone $ZONE --node-group $NODEGROUP
# Start VM
gcloud compute instances start $VM --zone $ZONE
